ERATAC Generation 2 Fixtures

#

NEW: GENERATION-2
● Lightweight lever and hex nut system
● Weight reduction up to 35 g / 1.24oz
● Same durability guaranteed
We distinguish between the following series:

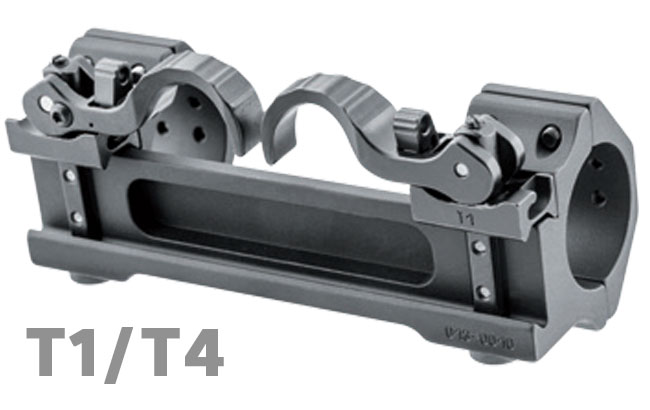

T1 – Safety levers STEEL
Our lever system, well-known for many years, will now be replaced by our new lightweight T4 lever system

(GEN-2).
NEW: T4 (GEN-2) – Safety levers ALUMINUM

Replaces the former T1 safety lever system. Our new T4 lever system is made from high-grade aluminum and is, like the previous T1 lever, equipped with an additional safety catch to avoid unintentional opening. The clamping force is fully adjustable and easily compensates for possible tolerances of the Picatinny dovetail. The ergonomic shape of the lever facilitates an easy handling, even when wearing gloves. The position of the levers can be freely chosen towards the front or rear.

ERATAC Generation 2

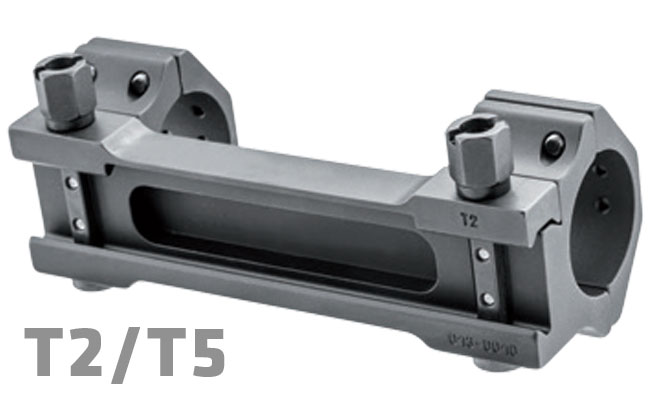

T2 – Hex Nut - STEEL clamping jaw
Our previously known hex nut system will now be replaced by our new lightweight T5 hex nut system

(GEN-2).
NEW: T5 (GEN-2) – Hex Nuts ALUMINUM clamping jaw

Steel hex nuts (like T2) in combination with a clamping jaw machined from high-grade aluminum allow for a weight reduction up to 35 g or 30% depending on the
respective product. These new hex nuts come with a special, self-locking thread which reliably prevents vibration-induced loosening.

ERATAC Generation 2

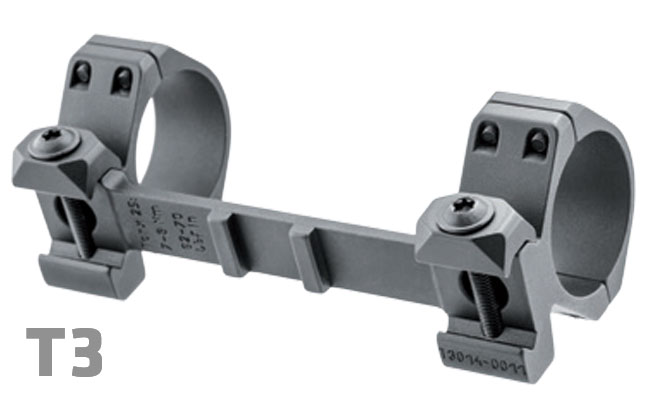

T3 – Ultralight one-piece mount - torx screws
Maximum reduction in weight, yet 100% recoilproof without loss of zero. Tested up to caliber .50. The 20 mm wide rings are deliberately designed without the UNIVERSAL-Interface. Torx screws reliably ensure secure clamping.

ERATAC Generation 2

The Full Range in the Catalogue

The full range of Recknagel scope mounts, parts, gun furniture and accessories are listed in full in the Catalogue. It is available to download and browse, but if you would like any advise, please contact us for more information.
If you cannot find a rail for your rifle, try looking at our Picatinny Rail List. This has a complete list of the rifle models we supply rails for, including part numbers, heights and hole spacing.
